HYDRAULIC ARM FOR TRUCKS FROM 3,5 TO 9 TONS

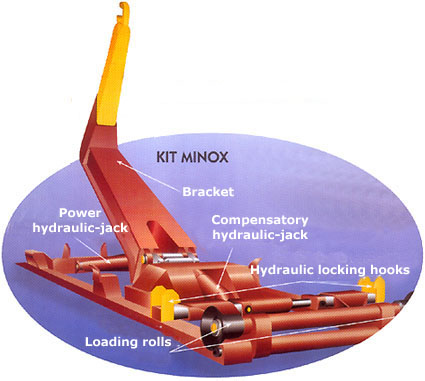

UNIQUE in its conception with only one powerful hydraulic hydraulic-jack set in the centre of the bracket to induce in its run all the moving parts.
UNIQUE in its reliability, its lightness, its great power in reserve and its extreme use-easiness with only one operating lever.

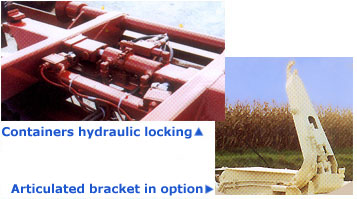

Two hooks, driven by a hydraulic-jack, lock the container on the outside wings of the rails.
The joint is made rigid to drive and tip.
A mechanical security device on the very distributor forbid any locking changes as soon as the container is unstuck of the body.




Great stability while tipping



Minimum tilting while loading-up containers
